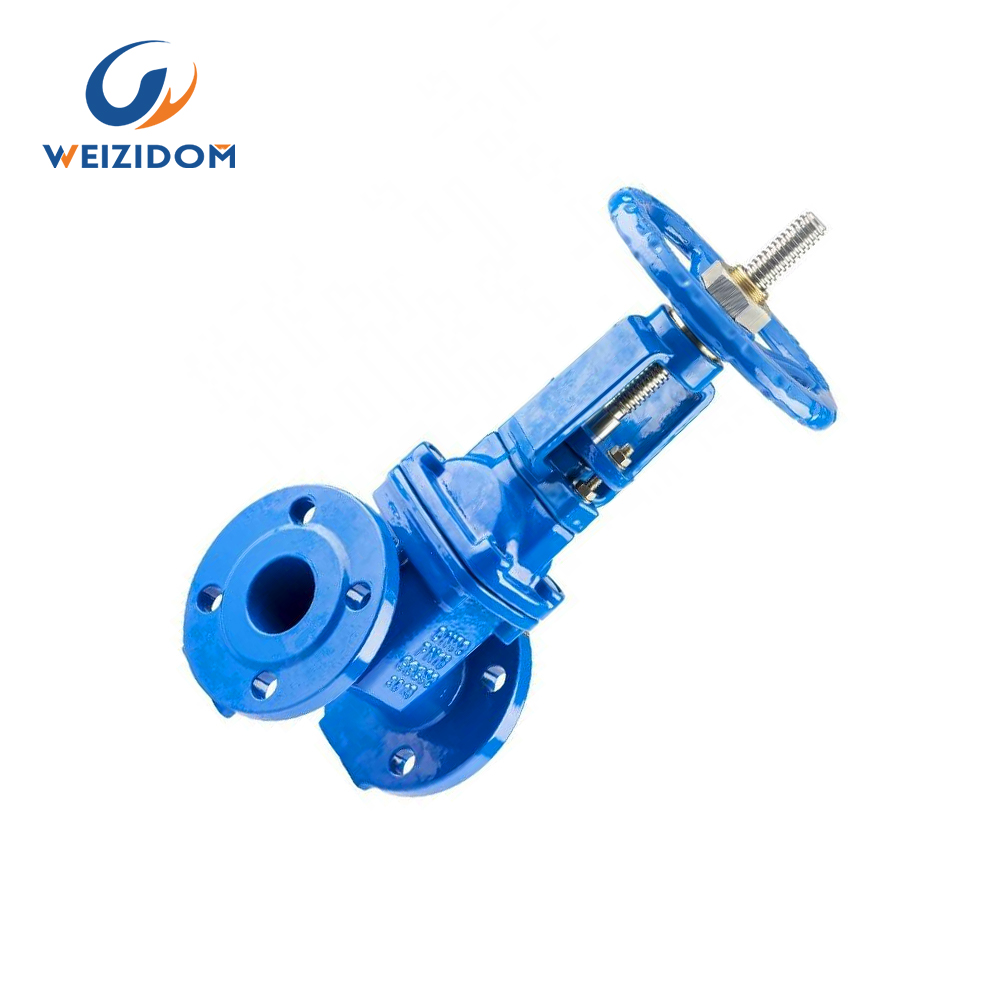

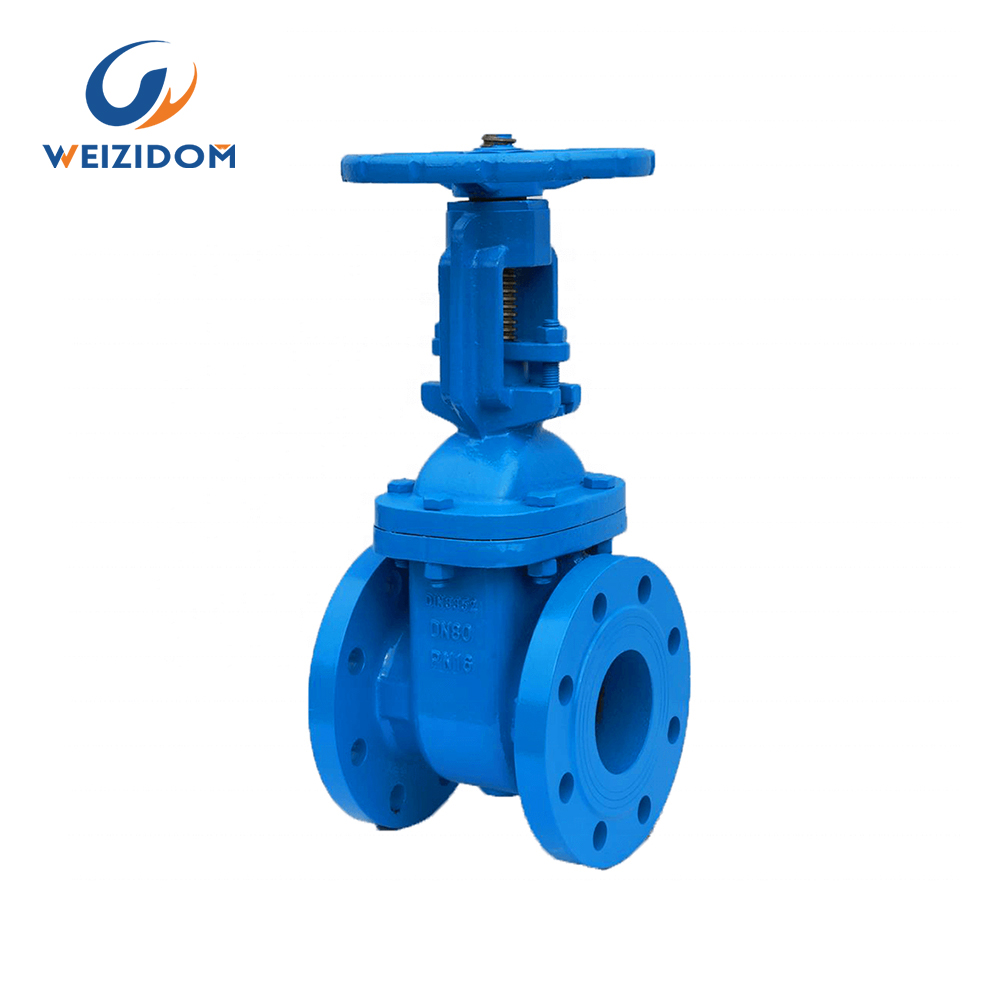

DIN EPDM seat rising stem gate valve

Product Category: Gate Valve

Diameter: DN50-DN300

Pressure: PN16/PN25

Valve design:DIN3352-F4

Face to Face:DIN3352、ISO5752

Flange Drilling:DIN2501/EN1092

Send E-mail:info@wsdvalve.com Mobile: +86-173197327665

Product Introduction

A rising stem gate valve is a fluid control valve that effectively controls the flow of fluid in a pipeline. Gate valves have the advantages of fast fluid shut-off, simplicity, reliability, and ease of maintenance. The gate valve has a flat, rectangular, or trapezoidal-shaped valve plate and is free to move within the grooves of the gate body to control the fluid in the pipeline by raising and lowering the valve plate. The rising stem gate valve is a fluid control valve that has a distinct trajectory of action, so called because the actuator such as a lever or handwheel rises and falls distinctly when opening and closing the valve.

Why choose us!

  • WESDOM patent products, patent certification

    The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards

    for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

    W
  • The product has an independent identity to ensure traceability

    Each wesdom product has its own unique identification number, to ensure product traceability.

    E
  • Provide material inspection report

    All wesdom products can provide the material inspection report of the main parts.

    S
  • One-stop service

    One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

    D
  • WESDOM has a lot of project experience

    We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

    O
  • WESDOM has a strict quality control system

    WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

    M

Quality Control Process

quality control process

Standard Test

test

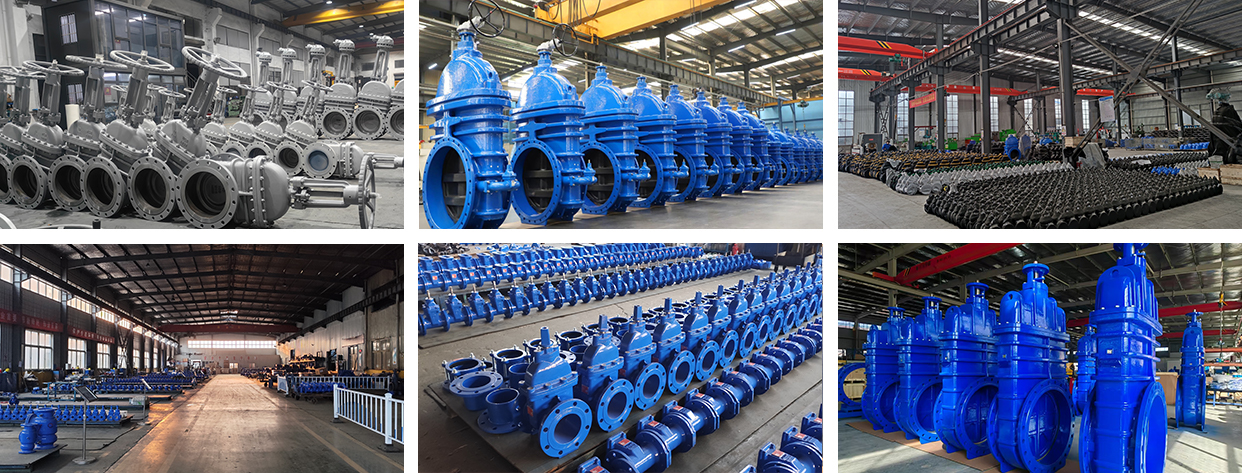

Factory Tour

WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang

and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

Detailed parameters

structure of gate valve

DN L(F4) L(BS) D1 D2 D3 H N-øD
PN10  PN16
50 150 178 99 125 165 220 4-ø19 4-ø19
65 170 190 118 145 185 240 4-ø19 4-ø19
80 180 203 132 160 200 290 8-ø19 8-ø19
100 190 229 156 180 220 330 8-ø19 8-ø19
125 200 254 184 210 250 375 8-ø19 8-ø19
150 210 267 211 240 285 420 8-ø23 8-ø23
200 230 292 266 295 340 500 8-ø23 12-ø23
250 250 330 319 355 405 610 12-ø23 12-ø28
300 270 356 370 410 460 720 12-ø23 12-ø28

wesdom gate valve

Rising stem gate valves have the following advantages!

  • Easy to install and maintain

    The relatively simple structure of the rising stem gate valve makes it easier to install and maintain.

    W
  • Low flow resistance

    The valve does not have any internal protrusions, and the resistance of the flow pipe is relatively small.

    E
  • Good sealing

    The sealing surface is flat and the sealing performance is good, there will be no air leakage, liquid leakage, and so on.

    S
  • Wide range of applications

    The rising stem gate valve is suitable for a variety of media, temperatures, pressure, pipe diameter, and other occasions.

    D
  • High reliability

    As it is the gate plate lifting to control the fluid flow, it will not be eroded or polluted by the medium and has a long service life.

    O
  • Lower maintenance costs

    The sealing ring of the resilient seated gate valve is made of highly elastic materials. It has a long service life and can save more maintenance costs.

    At the same time, the valve body is made of ductile iron. The weight is about 20% to 30% lighter than the traditional valve. It is easy to install and

    maintain and can reduce maintenance costs and time.

    M
