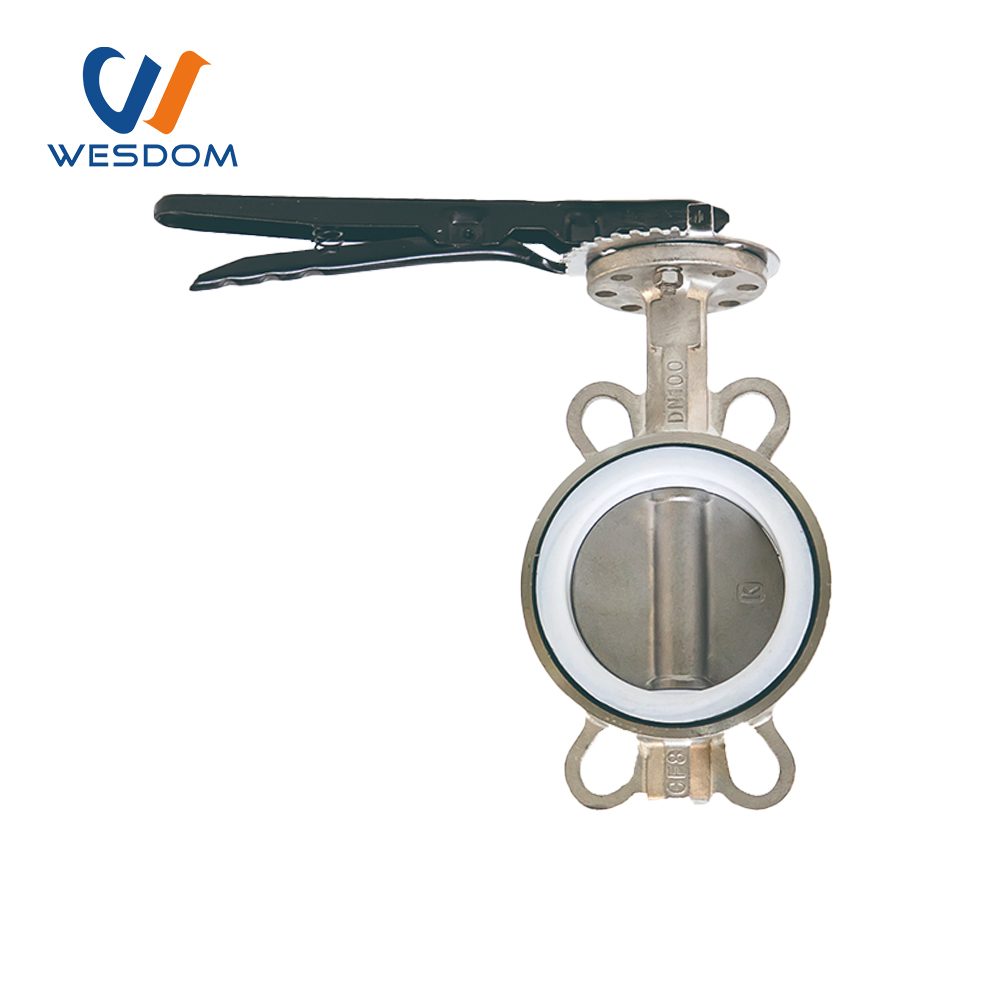

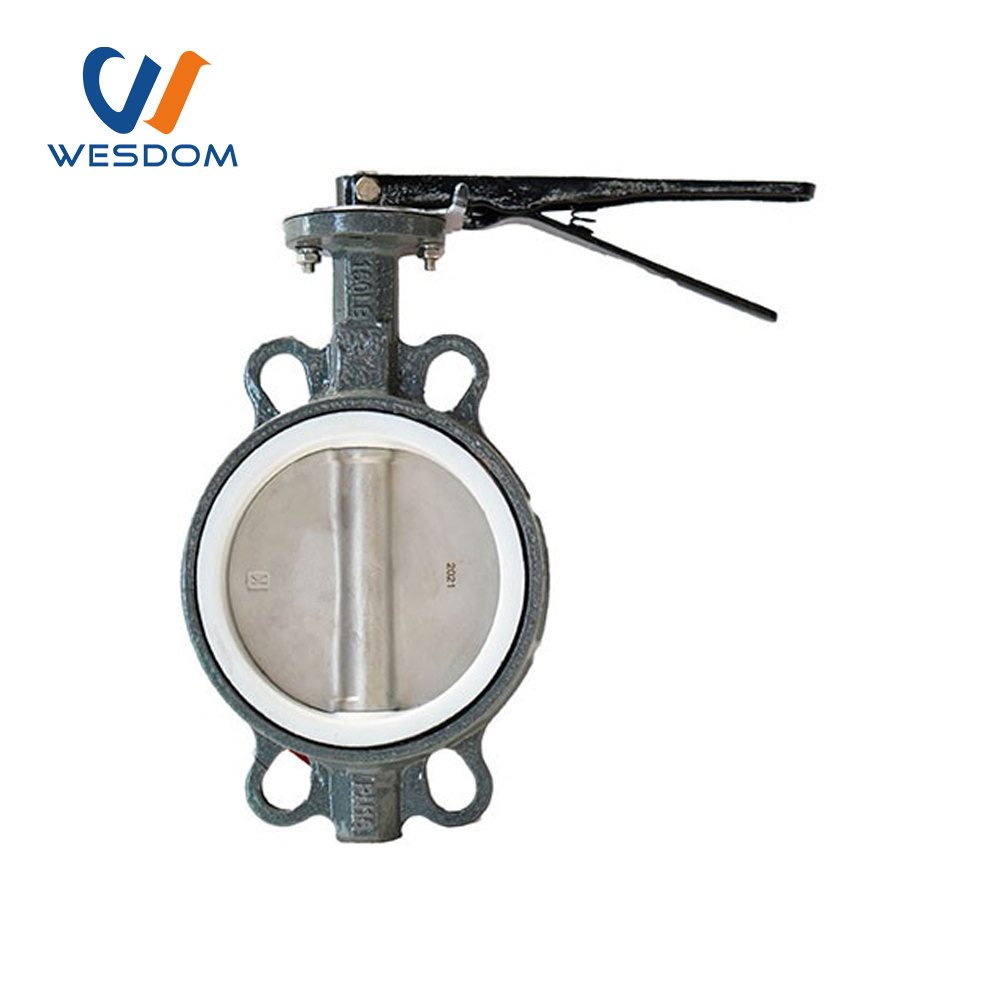

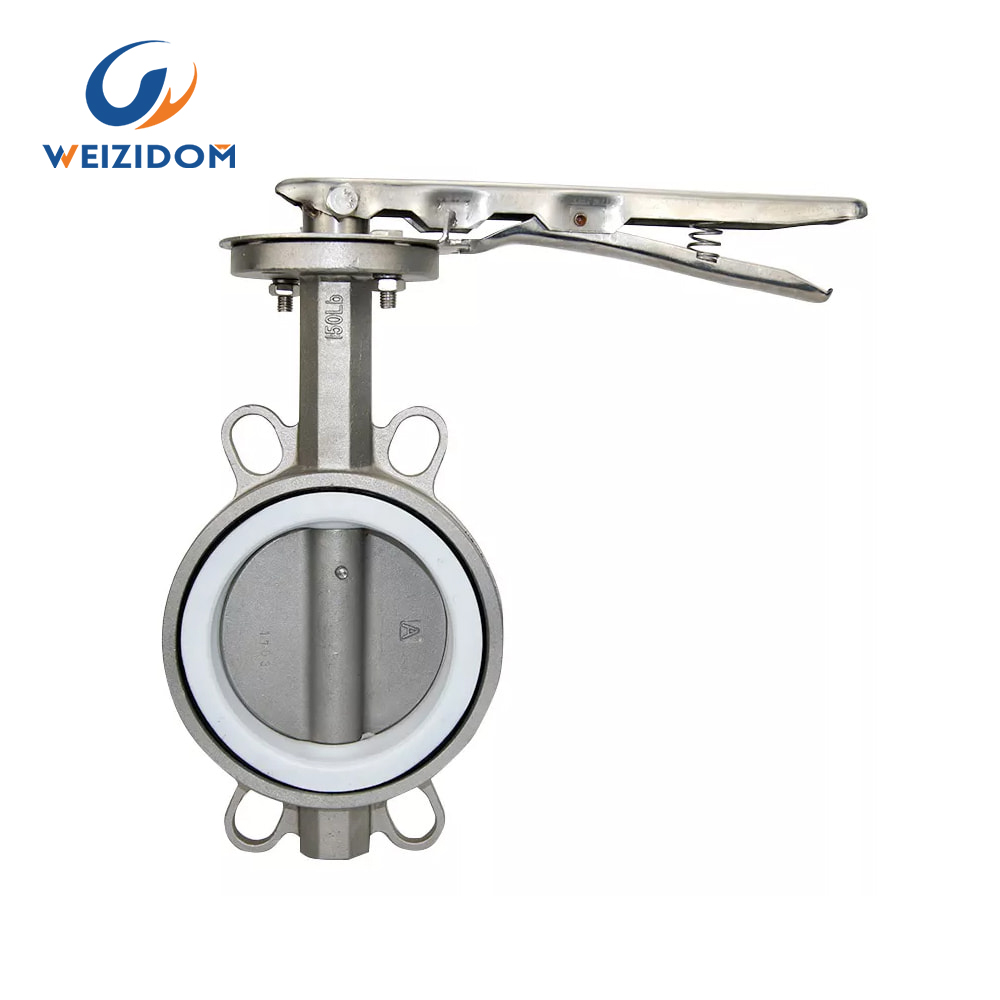

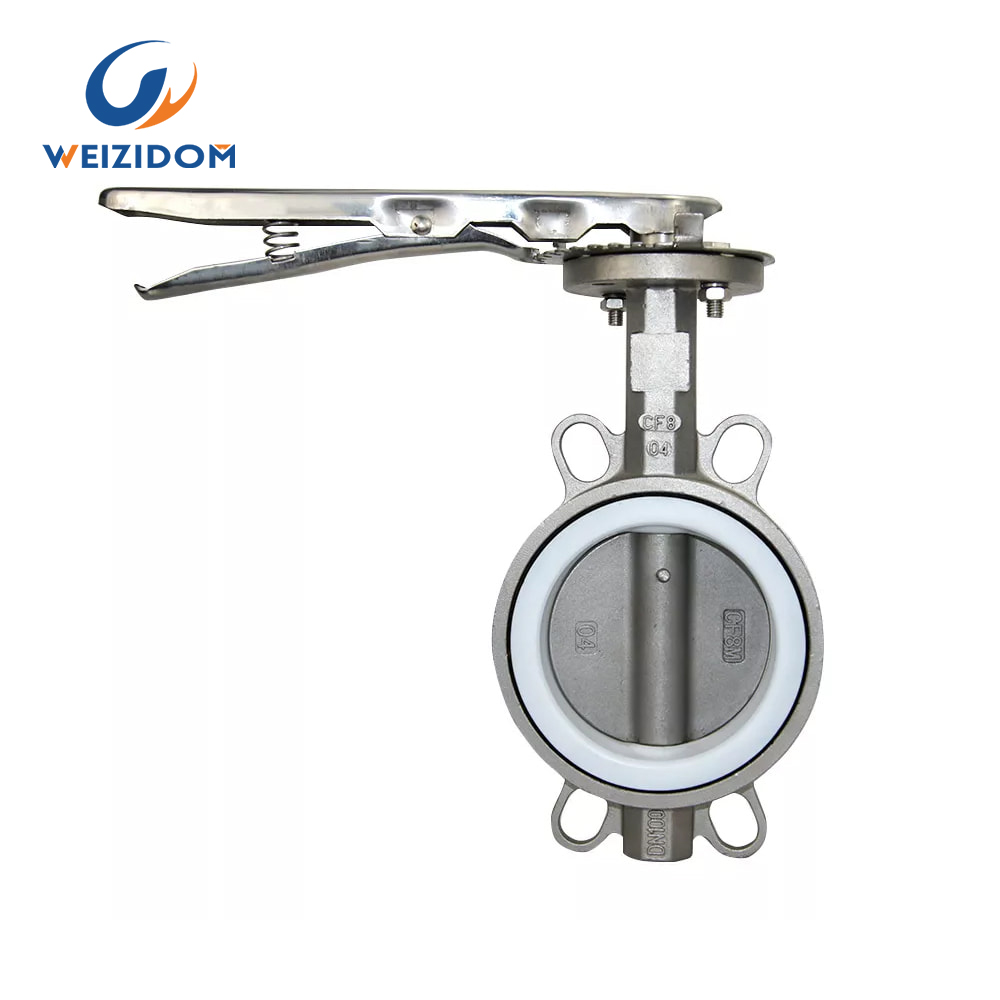

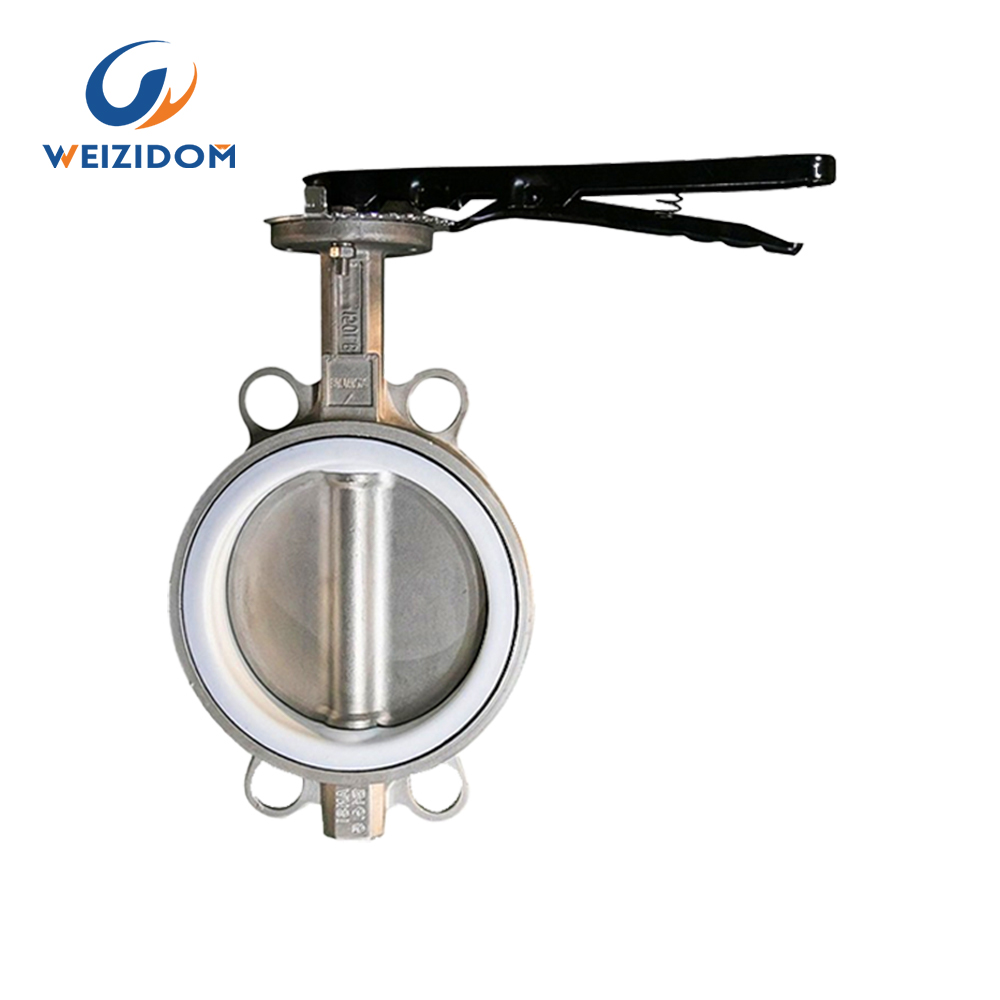

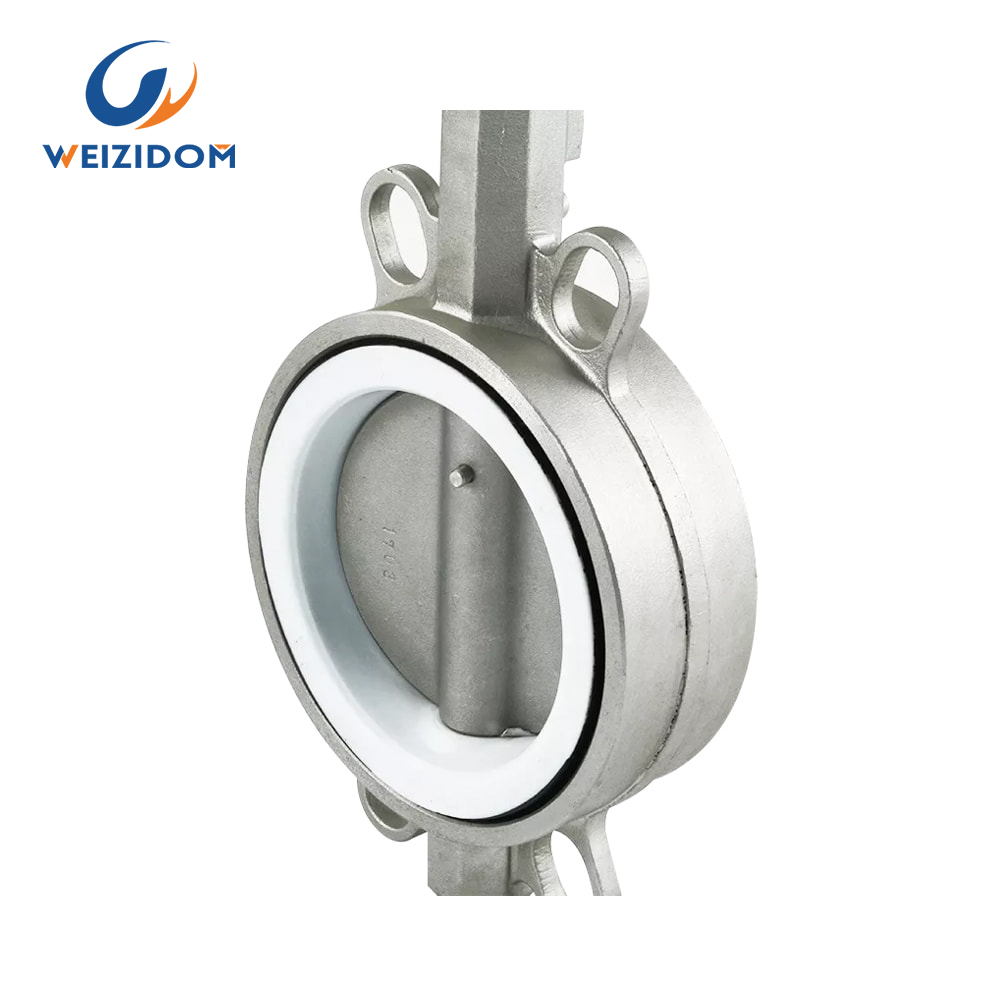

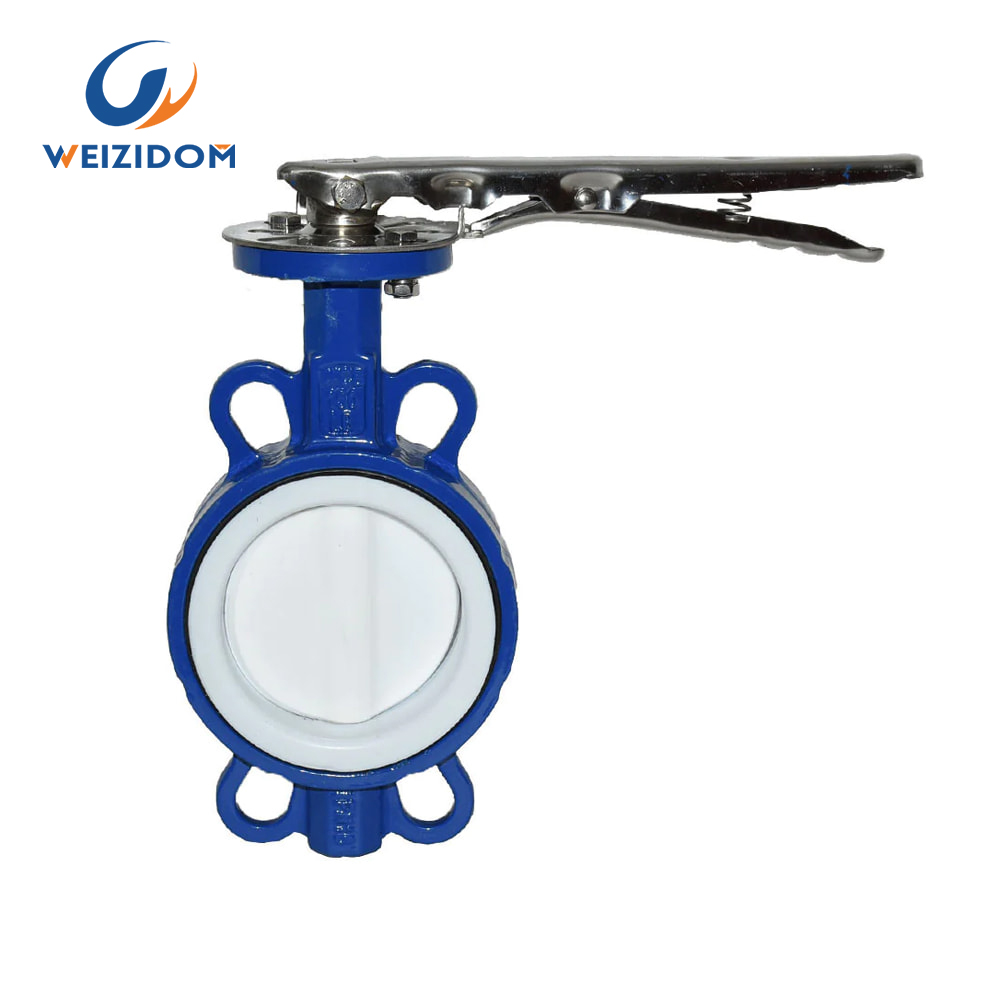

ANSI Wafer PTFE seat butterfly valve
Size scope: DN50-DN300
Design standard: API609, ANSI16.34, JISB2064, GB T12238
Test Inspection: API598
Working temperature: NBR O-70℃. EPDM o-80℃
Working pressure: PN10/16, 150-300LB
Suitable medium: Chemicals, air, water, steam, oil, acids, salts ect
Send E-mail:info@wsdvalve.com Mobile: +86-173197327665
A wafer PTFE seat butterfly valve is a type of butterfly valve that uses a wafer-style body design with a polytetrafluoroethylene (PTFE) seat. This valve is used to regulate or control the flow of various types of liquids, gases, and slurries in a variety of industries, including chemical processing, water treatment, and food and beverage production. The PTFE seat provides excellent chemical resistance, high-temperature tolerance, and low friction, making it an ideal material for use in harsh environments with corrosive or abrasive substances. The wafer design allows for easy installation and removal of the valve, and the butterfly disc provides a low-profile design that minimizes turbulence and pressure drop in the pipeline.
Why choose us!
-
WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards
for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
W -
The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
E -
Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
S -
One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
D -
WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
O -
WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
M
Standard Test
Factory Tour
WESDOM GROUP consists of 5 factories and 4 overseas branches. The five factories are mainly located in Tianjin, Hebei, Shandong, Lianyungang and Wenzhou. The four foreign branches are located in Tanzania, Zambia, Kenya and Indonesia.

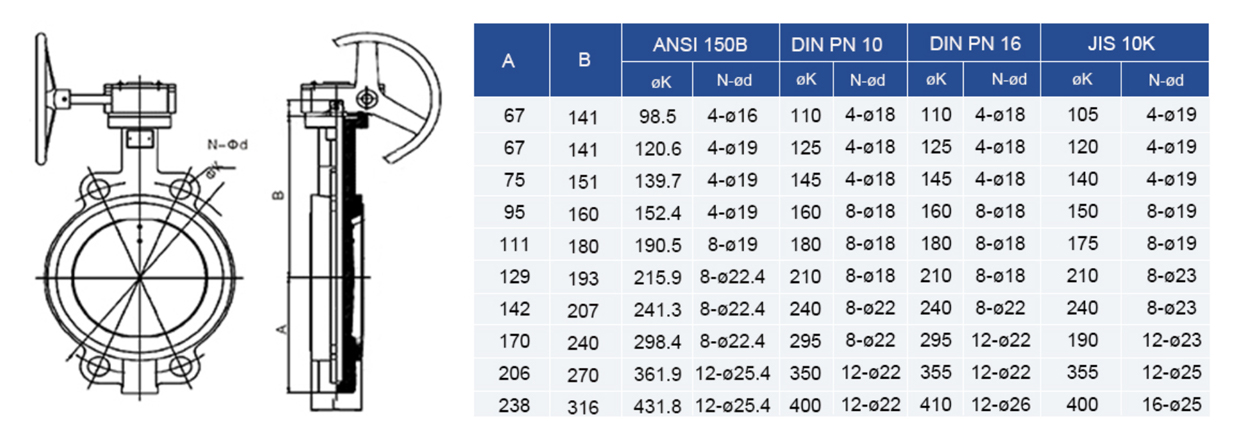

| A | B | ANSI 150B | DIN PN 10 | DIN PN 16 | JIS 10K | ||||
| øK | N-ød | øK | N-ød | øK | N-ød | øK | N-ød | ||
| 67 | 141 | 98.5 | 4-ø16 | 110 | 4-ø18 | 110 | 4-ø18 | 105 | 4-ø19 |
| 67 | 141 | 120.6 | 4-ø19 | 125 | 4-ø18 | 125 | 4-ø18 | 120 | 4-ø19 |
| 75 | 151 | 139.7 | 4-ø19 | 145 | 4-ø18 | 145 | 4-ø18 | 140 | 4-ø19 |
| 95 | 160 | 152.4 | 4-ø19 | 160 | 8-ø18 | 160 | 8-ø18 | 150 | 8-ø19 |
| 111 | 180 | 190.5 | 8-ø19 | 180 | 8-ø18 | 180 | 8-ø18 | 175 | 8-ø19 |
| 129 | 193 | 215.9 | 8-ø22.4 | 210 | 8-ø18 | 210 | 8-ø18 | 210 | 8-ø23 |
| 142 | 207 | 241.3 | 8-ø22.4 | 240 | 8-ø22 | 240 | 8-ø22 | 240 | 8-ø23 |
| 170 | 240 | 298.4 | 8-ø22.4 | 295 | 8-ø22 | 295 | 12-ø22 | 190 | 12-ø23 |
| 206 | 270 | 361.9 | 12-ø25.4 | 350 | 12-ø22 | 355 | 12-ø22 | 355 | 12-ø25 |
| 238 | 316 | 431.8 | 12-ø25.4 | 400 | 12-ø22 | 410 | 12-ø26 | 400 | 16-ø25 |
Advantages of wesdom butterfly valve!
-
The thickness of valve body wall is up to standard
The valve body wall thickness meets the requirement of GB 26640, the thickness is up to the standard, and the pressure strength is guaranteed.
W -
Valve body/valve plate is made of QT450-10 material
Valve body valve plate is made of qt450-10 material with spheroidization rate above grade 3, tensile strength of 450Mpa and elongation of >10%.
E -
Good sealing and long service life of valve seat
The valve seat is made of imported rubber material, with more than 50% rubber content; Elongation at break greater than 350%, valve sealingreliable, long
life.
S -
Soft back with wide side seat
Soft backrest wide side valve seat, is advantageous to the valve installation, in the pipeline and flange boss contact surface is wide, sealing performance
is reliable. Life is longer than a hard back. And easy to remove and replace.
D -
No pin structure to avoid corrosion
Butterfly plate and valve shaft adopt through shaft without pin structure to avoid leakage caused by hole mounting pin and accelerated corrosion caused
by coating damage.
O -
Valve body is sprayed with Aksu epoxy powerd
The valve body is sprayed with world-renowned Aksu epoxy resin powder, which has stronger adhesion and better environmental tolerance after melting and curing.
M
Project Name: Famous Textile Factory Project in Pakistan
Main products: flow meters and SS valves
Project Description:
This is a relatively special case. Because the customer know less about valves, but the demand is very large. So WESDOM assigns a professional team (salesmen and engineers from the International Trade Department) to conduct on-site inspections and give customer some Pertinent suggestions, and this customer are very shocked and moved by our service, and have established a long-term cooperative relationship with us without hesitation;
Project Pictures:
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
